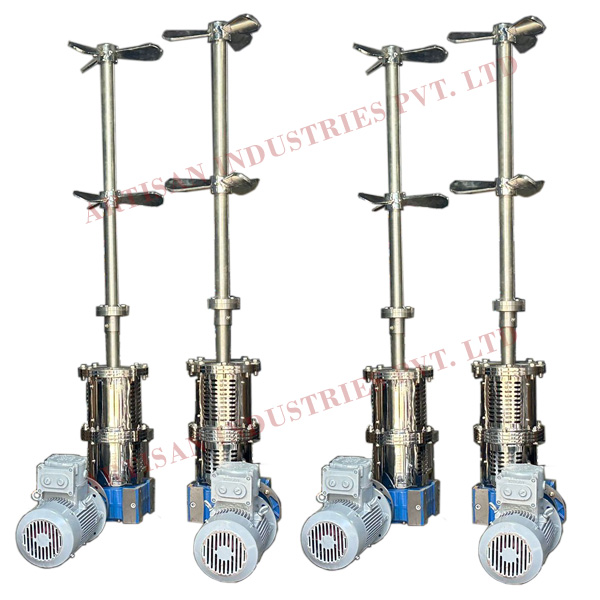

Top Entry Agitator
Artisan Top Entry Agitator is designed for efficient mixing, blending, and agitation of liquids in a wide range of industrial applications. Mounted vertically on the tank, it provides powerful mixing performance with optimized flow patterns, ensuring uniform product consistency. Built with robust materials like SS304 and SS316, it delivers durability, corrosion resistance, and long service life.
Ideal for industries such as pharmaceuticals, chemicals, food, cosmetics, and water treatment, this agitator offers versatility and efficiency. Its customizable design allows for varied impeller types, speeds, and configurations to meet specific process requirements, making it a reliable solution for complex mixing challenges.
Models & Data Sheet

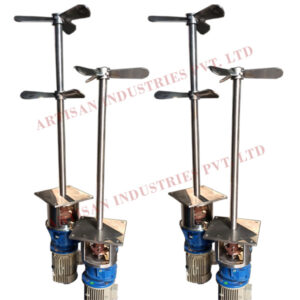

Propeller Agitator for Non-Pressure Vessel
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (KL) |
| TEA-N1 | 1 | 100/150 | <1.0 |
| TEA-N2 | 2 | 100/150 | <2.0 |
| TEA-N3 | 3 | 100/150 | <2.0 |
| TEA-N5 | 5 | 75/100 | <5.0 |
| TEA-N7.5 | 7.5 | 75/100 | <7.5 |
| TEA-N10 | 10 | 75/100 | <10 |
| TEA-N15 | 15 | 50/75 | <12 |
| TEA-N20 | 20 | 50/75 | <15 |
| TEA-N25 | 25 | 50/75 | <20 |
| TEA-N30 | 30 | 50/75 | <25 |
| TEA-N40 | 40 | 30/50 | <30 |
| TEA-N50 | 50 | 30/50 | <35 |
Propeller Agitator for Pressure Vessel
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| TEA-P1 | 1 | 1500 | <0.5 |
| TEA-P2 | 2 | 1500 | <1.0 |
| TEA-P3 | 3 | 1500 | <1.5 |
| TEA-P5 | 5 | 1500 | <2.0 |
| TEA-P7.5 | 7.5 | 1500 | <3.0 |
| TEA-P10 | 10 | 1500 | <5.0 |
| TEA-P15 | 15 | 1000/1500 | <7.5 |
| TEA-P20 | 20 | 1000/1500 | <10 |
| TEA-P25 | 25 | 1000/1500 | <12 |
| TEA-P30 | 30 | 1000/1500 | <15 |
| TEA-P40 | 40 | 1000/1500 | <18 |
| TEA-P50 | 50 | 1000/1500 | <20 |
Specifications & Key Features
- Motor Power (range) — Available from 1 HP to 75 HP+, suitable for lab-scale to large industrial tanks.
- Speed Range — Variable speed typically 20–1500 RPM using VFD for precise agitation control.
- High-Torque Gearbox — Helical or planetary gearbox options for mixing high-viscosity fluids at low speeds.
- Top-Entry Shaft & Impeller — Stainless-steel shaft (Ø 30–100 mm) with interchangeable impellers (anchor, propeller, turbine) for versatile mixing.
- Mounting & Flange Options — Flanged top-mount design with anti-vibration and torque arm options for stable installation.
- Seal Options — Mechanical seals, stuffing boxes, or pressurized barrier seals for leak-proof operation and hygienic processes.
- Material of Construction — SS304/SS316 or optional sanitary polish for chemical, food, and pharmaceutical applications.
- Control & Safety Features — Integrated control panel with start/stop, VFD, torque monitoring, and emergency stop for safe operation.
- Maintenance & Serviceability — Modular design with easy access to bearings, seals, and impellers for minimal downtime.
- Applications & Performance — Ideal for blending, emulsifying, and homogenizing in paints, coatings, adhesives, cosmetics, chemicals, and food/pharma industries; handles low- to high-viscosity fluids efficiently.
Advantages
- High-efficiency mixing — Ensures uniform blending of low- to high-viscosity fluids.
- Space-saving installation — Mounts directly on tank tops, freeing floor space.
- Durable & low-maintenance — Stainless-steel construction with easy-access components.

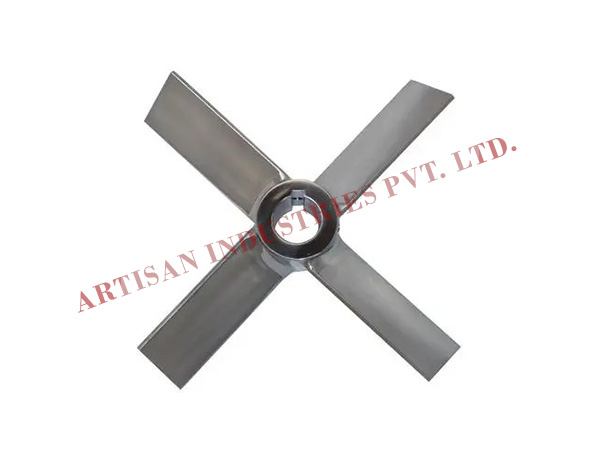

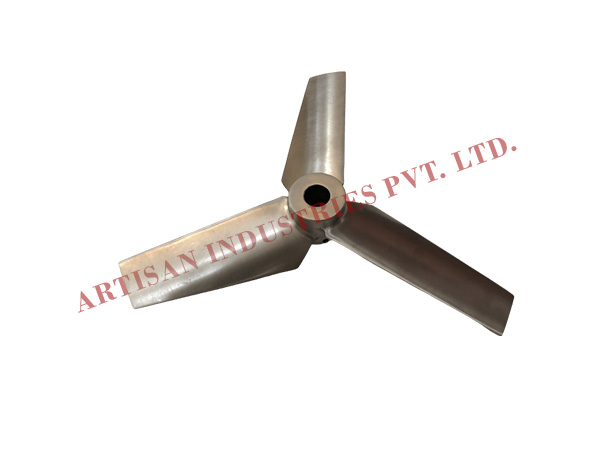

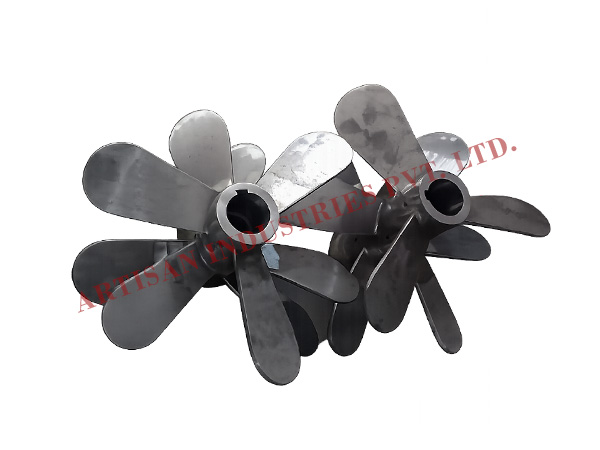

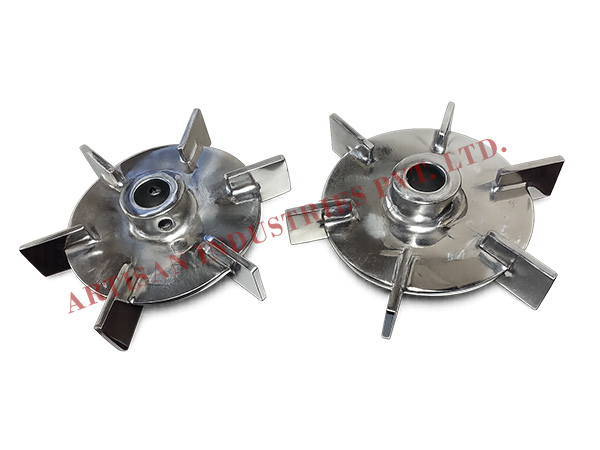

- Versatile impeller options — Supports anchor, propeller, turbine, and other impellers.
- Precise process control — VFD and torque monitoring for consistent, high-quality results.
Applications
- Paints & Coatings — Efficient dispersion of pigments, resins, and additives for smooth, uniform products.
- Adhesives & Sealants — Blending of polymers, thickeners, and additives for stable formulations.
- Cosmetics & Personal Care — Homogenizing creams, lotions, gels, and emulsions for smooth texture.
- Chemicals & Petrochemicals — Processing emulsions, suspensions, and polymer solutions in large reactors.
- Food & Pharmaceuticals — Hygienic mixing of sauces, syrups, and liquid formulations under sanitary conditions
