Laboratory High Shear Mixer
(Homogenizer, Emulsifier)

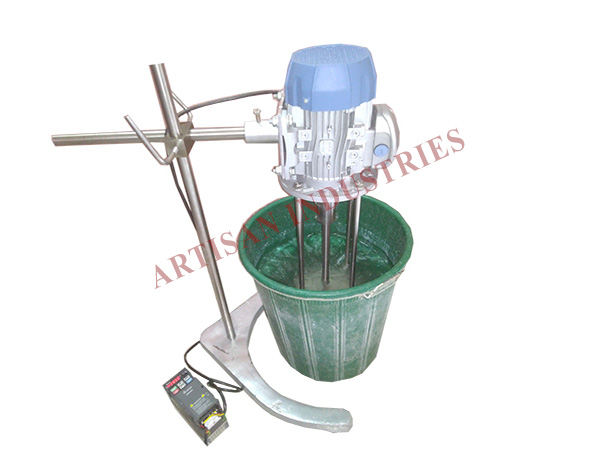

Artisan Laboratory High Shear Mixer (Homogenizer, Emulsifier) is designed for precision mixing, emulsifying, and homogenizing of small-scale batches. Equipped with a high-speed rotor-stator system, it generates intense shear forces that reduce particle sizes and create uniform, stable mixtures. Built with premium stainless steel like SS304 and SS316, it ensures durability, hygiene, and resistance to corrosion, making it suitable for sensitive formulations. Compact and user-friendly, it delivers consistent results while saving time and energy.
Ideal for R&D, pilot-scale trials, and product development, this mixer is widely used in pharmaceuticals, cosmetics, food, chemicals, and biotechnology. Its reliable performance, easy operation, and low maintenance make it an essential tool for laboratory-scale innovation and process optimization.
Models & Data Sheet
| Model | Motor Power Watt (HP) | Motor Type | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| LH-5 | 370 (0.5) | AC Induction Motor | 500-3000 | 1.0-5.0 |
| LH-10 | 745 (1.0) | AC Induction Motor | 500-3000 | 5.0-10 |
| LHB-1 | 120 (0.16) | BLDC Motor | 500-6000 | 0.2-2.0 |
| LHB-5 | 370 (0.5) | BLDC Motor | 500-6000 | 0.5-2.5 |
| LHB-10 | 745 (1.0) | 500-6000 | 1.0-3.0 |
Specifications & Key Features
- Motor Power — Compact 0.5 HP to 5 HP motors suitable for lab and pilot-scale operations.
- Speed Range — 500–6000 RPM for high-shear mixing, emulsification, and homogenization.
- Top-Entry Design — Fits directly on lab or pilot tanks for convenient and space-saving operation.

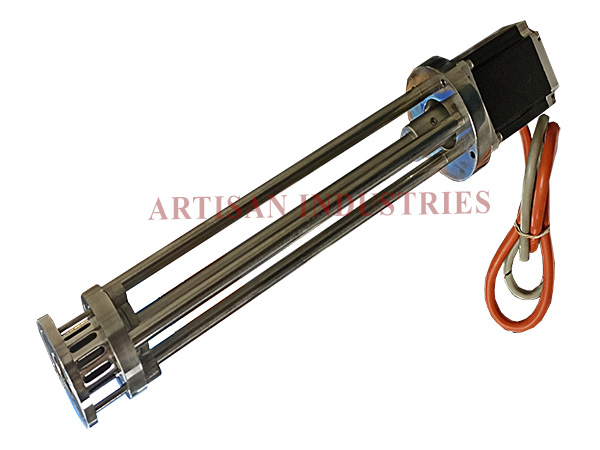

- Rotor-Stator Heads — Interchangeable heads for fine emulsions, nano-dispersions, and efficient particle size reduction.
- Material of Construction — SS304/SS316 wetted parts for chemical resistance, durability, and easy cleaning.
- Variable Speed Control — Stepless VFD control allows precise shear adjustment for different viscosities.
- Manual or Hydraulic Lifting — Adjustable head height for controlled immersion depth and repeatable results.
- Control & Safety Features — Includes start/stop, emergency stop, and overload protection for safe operation.
- Maintenance & Serviceability — Quick rotor-stator removal and easy-access seals reduce downtime and cleaning effort.
- Applications & Performance — Ideal for pharmaceutical, cosmetic, food, chemical, and paint formulations; ensures uniform emulsions, stable suspensions, and consistent particle size reduction
Advantages
- High-efficiency mixing — Provides uniform emulsions and particle size reduction in a short processing time.
- Versatile rotor-stator options — Allows precise control for different formulations, viscosities, and shear requirements.
- Compact and space-saving — Top-entry design fits directly on lab or pilot tanks.
- Durable and chemical-resistant — SS304/SS316 wetted parts ensure long service life and easy cleaning.
- Safe and user-friendly — Equipped with variable speed control, emergency stop, and overload protection for lab safety.
Applications
- Pharmaceuticals — Homogenizing suspensions, emulsions, and liquid formulations for consistent particle size.
- Cosmetics & Personal Care — Mixing creams, lotions, gels, and serums with smooth, uniform texture.
- Food & Beverages — Emulsifying sauces, syrups, and liquid ingredients for stable and consistent products.
- Chemicals & Paints — Dispersion of pigments, resins, and additives for uniform color and viscosity.
- Laboratory & Pilot Formulations — Ideal for small-scale research, development, and pilot batch testing of liquids and semi-solids.
