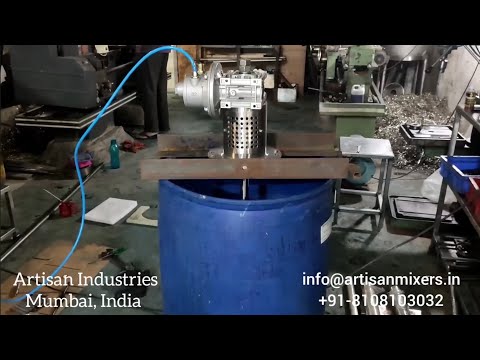

Pneumatic Stirrer
Artisan Pneumatic Stirrer is designed to deliver efficient mixing, blending, and agitation powered by compressed air, making it a safe and reliable choice in environments where electrical equipment may pose risks. Compact yet powerful, it ensures smooth operation with adjustable speed control for handling a wide range of viscosities. Constructed from robust stainless steel grades such as SS304 and SS316, it offers durability, hygiene, and corrosion resistance. Its lightweight design and easy portability make it suitable for versatile applications across different setups.
Ideal for industries such as pharmaceuticals, chemicals, paints, coatings, cosmetics, and food, this stirrer provides consistent results while ensuring operator safety. Its explosion-proof, energy-efficient, and low-maintenance design makes the Pneumatic Stirrer a cost-effective solution for both batch and continuous operations.
Models & Data Sheet
High Speed Pneumatic Stirrer
| Model | Motor Power (HP) | Rotation Speed (RPM) | Suggested Capacity (L) |
| HPS-1 | 1 | 1000 | <50 |
| HPS-2 | 2 | 1000 | <75 |
| HPS-3 | 3 | 1000 | <100 |
| HPS-5 | 5 | 1000 | <200 |
Low Speed Pneumatic Stirrer
| Model | Motor Power (HP) | Rotation Speed (RPM) | Suggested Capacity (L) |
| LPS-1 | 1 | 50-200 | <75 |
| LPS-2 | 2 | 50-200 | <100 |
| LPS-3 | 3 | 50-150 | <200 |
| LPS-5 | 5 | 50-100 | <300 |
Specifications & Key Features
- Drive Type — Powered by compressed air, eliminating the need for electric motors and electrical connections.
- Motor Power Range — Air motor equivalent to 0.5 HP to 10 HP, suitable for lab, pilot, and industrial applications.
- Speed Range — Variable speed 50–3000 RPM controlled via air pressure adjustment or regulator.
- Torque Output — High torque at low speeds ideal for viscous liquids, suspensions, and shear-sensitive materials.
- Top-Entry or Side-Entry Design — Flexible mounting options for various tank configurations.
- Impeller Options — Interchangeable impellers such as propeller, paddle, turbine, and helical ribbon for versatile mixing.
- Material of Construction — SS304/SS316 wetted parts, with optional coatings for chemical resistance and hygienic processes.
- Control & Safety Features — Air pressure regulator and flow control provide safe and precise operation; eliminates spark hazards.
- Maintenance & Serviceability — Minimal maintenance due to simple air motor design; easy access to impellers and bearings.
- Applications & Performance — Ideal for chemicals, paints, coatings, adhesives, food, cosmetics, and pharmaceuticals; ensures uniform blending, low-shear mixing, and consistent product quality even in hazardous or flammable environments.
Advantages
- Explosion-proof operation — Air-driven motor eliminates electrical hazards in flammable or volatile environments.
- High torque at low speeds — Ideal for mixing viscous liquids, suspensions, and shear-sensitive materials.
- Variable speed control — Air pressure adjustment allows precise mixing for different formulations.
- Durable and corrosion-resistant — Stainless-steel wetted parts ensure long service life and chemical resistance.
- Low maintenance — Simple air motor design with easily accessible components reduces downtime and service costs.
Applications
- Chemicals & Solvents — Efficient blending and dispersion of viscous chemicals and reactive liquids.
- Paints & Coatings — Uniform mixing of pigments, resins, and additives for consistent color and texture.
- Adhesives & Sealants — Blending polymers, thickeners, and additives in high-viscosity formulations.
- Food & Beverages — Mixing sauces, syrups, and other liquid ingredients in hygienic applications.
- Cosmetics & Pharmaceuticals — Homogenizing creams, lotions, gels, and suspensions under safe, non-sparking conditions.
