Inline Homogenizer- Multi Stage
Artisan Multi-Stage Inline Homogenizer system is engineered for high-efficiency continuous mixing, emulsifying, and particle size reduction. Featuring multiple concentric rotor-stator stages, it ensures thorough homogenization even for highly viscous products, delivering uniform texture and stability. Constructed with SS316L contact parts and sanitary clamp connections, it is compliant with cGMP standards and suitable for pharmaceutical, cosmetic, food, and chemical industries.
Designed for flow rates up to 50 m³/h and viscosities ranging from 5,000 to 100,000 cPs, this hygienic inline homogenizer achieves micron-level droplet size reduction without product degradation. With CIP/SIP cleanability, user-friendly controls, and robust sealing, it offers reliable, scalable performance for demanding continuous processing applications. We provided single piece VMC machined stator rotor with our multistage homogenizer.
Models & Data Sheet
Two Stage Inline Homogenizer
| Model | Motor Power (HP) | Rotation Speed, @50 Hz (RPM) | Flow Rate, @ 1 cPs (KL/Hr) |
|---|---|---|---|
| DSH-2 | 2 | 3000 | 5 |
| DSH-3 | 3 | 3000 | 10 |
| DSH-5 | 5 | 3000 | 15 |
| DSH-7.5 | 7.5 | 3000 | 20 |
| DSH-10 | 10 | 3000 | 25 |
| DSH-15 | 15 | 3000 | 30 |
| DSH-20 | 20 | 3000 | 35 |
| DSH-30 | 30 | 3000 | 40 |
| DSH-40 | 40 | 1500/3000 | 50 |
| DSH-50 | 50 | 1500/3000 | 60 |
| DSH-100 | 100 | 1500/3000 | 80 |
Three Stage Inline Homogenizer
| Model | Motor Power (HP) | Rotation Speed, @50 Hz (RPM) | Flow Rate, @ 1 cPs (KL/Hr) |
|---|---|---|---|
| TSH-3 | 3 | 3000 | 5 |
| TSH-5 | 5 | 3000 | 10 |
| TSH-7.5 | 7.5 | 3000 | 15 |
| TSH-10 | 10 | 3000 | 20 |
| TSH-15 | 15 | 3000 | 25 |
| TSH-20 | 20 | 3000 | 30 |
| TSH-30 | 30 | 1500/3000 | 40 |
| TSH-40 | 40 | 1500/3000 | 45 |
| TSH-50 | 50 | 1500/3000 | 50 |
| TSH-75 | 75 | 1500/3000 | 60 |
| TSH-100 | 100 | 1500/300 | 70 |
Four Stage Inline Homogenizer
| Model | Motor Power (HP) | Rotation Speed, @50 Hz (RPM) | Flow Rate, @ 1 cPs (KL/Hr) |
|---|---|---|---|
| FSH-5 | 5 | 3000 | 5 |
| FSH-7.5 | 7.5 | 3000 | 7.5 |
| FSH-10 | 10 | 3000 | 10 |
| FSH-15 | 15 | 3000 | 15 |
| FSH-20 | 20 | 3000 | 20 |
| FSH-30 | 30 | 1500/3000 | 30 |
| FSH-40 | 40 | 1500/3000 | 40 |
| FSH-50 | 50 | 1500/3000 | 45 |
| FSH-75 | 75 | 1500/3000 | 55 |
| FSH-100 | 100 | 1500/3000 | 65 |
| FSH-120 | 120 | 1500/3000 | 70 |

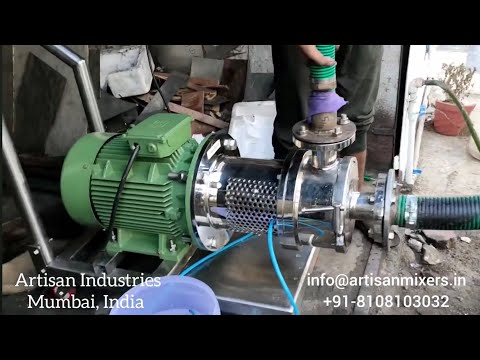

You May Check Attached videos
Two Stage Inline Homogenizer
Three Stage Inline Homogenizer
Four Stage Inline Homogenizer
Specification & Key Features
- Type: Inline High Shear Homogenizer with rotor–stator design.
- Motor Power: Available from 1 HP to 75 HP, selected according to process volume and viscosity.
- Speed Range: 2,800 to 3,600 RPM (variable with VFD option for precise control).
- Material of Construction: All wetted parts made of SS304, SS316, or SS316L for sanitary and corrosion-resistant operation.
- Rotor–Stator Stages: Single, double, or triple-stage options for desired shear intensity and product fineness.
- Mechanical Seal: Single or double mechanical seal with water cooling arrangement to prevent leakage and contamination.
- Inlet/Outlet Connection: Tri-clamp, SMS union, or flange connections for easy pipeline integration.
- Surface Finish: Internal surfaces mirror polished to Ra < 0.8 µm; external surfaces matte or mirror finish as per hygiene standards.
- Operating Temperature: Suitable for up to 120°C (depending on seal and material selection).
- Operating Pressure: Designed for up to 10 bar (higher pressure designs available on request).
- Mounting Type: Skid-mounted or pipeline-mounted design for inline continuous processing.
- Power Supply: 415 V, 50/60 Hz, 3 Phase AC with optional control panel and VFD.
Genral Application
- Pharmaceutical Industry: Used for emulsifying creams, ointments, gels, and suspensions to achieve uniform particle size and smooth texture.
- Food & Beverage Industry: Ideal for producing sauces, dressings, juices, dairy products, and flavor emulsions with consistent taste and stability.
- Cosmetic Industry: Employed to create stable emulsions in lotions, shampoos, conditioners, and creams with fine dispersion of ingredients.
- Chemical Industry: Used in paints, coatings, resins, wax emulsions, and detergents for uniform mixing and improved product consistency.
- Biotechnology & Laboratory Use: Suitable for cell disruption, protein extraction, and sample homogenization under controlled conditions.
- Adhesives & Sealants: Ensures uniform dispersion of polymers and fillers for better bonding and smooth texture.
- Petrochemical Industry: Applied in emulsifying lubricants, fuels, and additives for consistent product quality.
- Textile & Dye Industry: Helps in preparing uniform dye solutions and pigment dispersions for better fabric coloration.
- Agricultural Formulations: Used to produce pesticide emulsions, fertilizers, and growth-promoting formulations with fine droplet size.
- Paints & Inks Manufacturing: Provides uniform pigment dispersion and improved color strength, gloss, and product stability.
