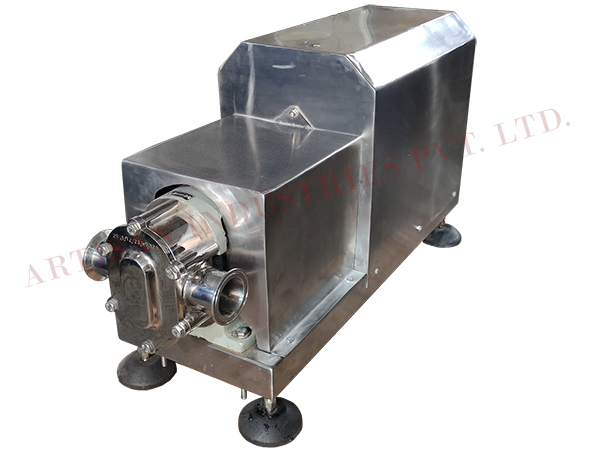

Lobe Pump
Artisan Lobe Pump is a highly efficient positive displacement pump designed for gentle handling and precise transfer of liquids across various industries. Featuring rotating lobes that create smooth, low-shear flow, it maintains product integrity while ensuring consistent and reliable performance. Constructed from premium stainless steel such as SS304 and SS316, it provides exceptional durability, corrosion resistance, and hygienic operation, making it suitable for sensitive or abrasive fluids. Its robust design ensures long service life with minimal maintenance.
Widely used in pharmaceuticals, food, beverages, cosmetics, and chemical industries, this pump is ideal for handling viscous liquids, slurries, and shear-sensitive products. With easy cleaning options, energy efficiency, and reliable performance, the Lobe Pump offers a versatile and cost-effective solution for demanding fluid transfer applications.
Models & Data Sheet
| Model | Motor Power (HP) | Rotation Speed @50 Hz (RPM) | Flow Rate @1cPs (m³/h) |
| LP-1 | 1 | 700 | 3 |
| LP-2 | 2 | 700 | 5 |
| LP-3 | 3 | 400/700 | 7.5 |
| LP-5 | 5 | 400/700 | 10 |
| LP-7.5 | 7.5 | 400 | 15 |
| LP-10 | 10 | 400 | 20 |
Specifications & Key Features
- Pump Type — Positive displacement, rotary lobe pump for consistent flow at varying viscosities.
- Flow Rate — Capable of handling 1–500 m³/h, depending on pump size and application.
- Pressure Rating — Operates up to 10 bar (145 psi) standard; high-pressure variants available.
- Material of Construction — SS304/SS316L wetted parts with optional sanitary finish for hygienic applications.
- Seal Options — Mechanical seals, single or double seals, and sanitary options for leak-proof operation.
- Connection Type — Tri-clamp, DIN, ISO, or threaded connections for easy integration into piping systems.
- Temperature Range — Handles liquids from 0–150°C, suitable for hot or cold product transfer.
- Viscosity Handling — Efficiently pumps low- to high-viscosity liquids up to 200,000 cP.
- Sanitary & Hygienic Design — Smooth internal surfaces, minimal dead zones, and CIP (Clean-in-Place) compatibility.
- Applications & Performance — Ideal for food, beverages, dairy, pharmaceuticals, cosmetics, and chemical industries; ensures gentle, contamination-free handling of liquids, pastes, and slurries.
Advantages
- Gentle product handling — Positive displacement design preserves the integrity of shear-sensitive liquids and slurries.
- Hygienic & sanitary — Smooth surfaces and CIP compatibility reduce contamination risks.
- Versatile viscosity handling — Efficiently pumps low- to high-viscosity liquids up to 200,000 cP.
- Durable construction — SS304/SS316L materials and robust design ensure long service life.
- Flexible integration — Multiple connection types (tri-clamp, DIN, ISO, threaded) allow easy installation in sanitary piping systems.
Applications
- Food & Beverages — Gentle pumping of sauces, syrups, jams, and liquid foods without product damage.
- Dairy Industry — Handling milk, cream, yogurt, and cheese curds hygienically.
- Pharmaceuticals & Biotech — Transferring sterile liquids, suspensions, and viscous formulations safely.
- Cosmetics & Personal Care — Pumping lotions, creams, gels, and emulsions while maintaining consistency.
- Chemical & Industrial Applications — Moving viscous chemicals, slurries, and pastes efficiently and safely.
