Laboratory Homogenizer
(High Shear Mixer, Emulsifier)
The Artisan Laboratory Homogenizer is a compact high-shear mixing machine designed for accurate laboratory-scale product development. It applies strong mechanical shear to reduce particle size and create smooth, stable, and uniform mixtures. This laboratory high shear mixer is suitable for homogenization, emulsification, dispersion, and formulation testing. Variable speed control allows operators to adjust the mixing intensity according to the viscosity and nature of the material. The machine can process small batches ranging from approximately 1 to 10 litres, depending on the selected model. Manual and automatic lifting options provide convenient positioning of the homogenizing head for different container sizes. The high-speed rotor-stator mixing action helps distribute ingredients evenly and improves the consistency of the finished product. A laboratory homogenizer enables researchers to evaluate and refine formulations before transferring them to large-scale production.
Laboratory Homogenizer-Automatic Lifting
A Laboratory Homogenizer with Automatic Lifting is a high-shear mixing system designed for precise homogenization, emulsification, and dispersion of laboratory-scale formulations with effortless electric height adjustment. Its motorized lifting mechanism ensures smooth, accurate positioning of the homogenizing head, improving operator convenience, process consistency, and safety.
Models & Data Sheet
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| LHA-5 | 1/2 | 500-3000 | 1-5 |
| LHA-7 | 3/4 | 500-3000 | 3-7 |
| LHA-10 | 1 | 500-3000 | 3-10 |
| LHA-5* | 1/2 | 500-5000 | 1-3 |
| LHA-7* | 3/4 | 500-5000 | 2-5 |
| LHA-10* | 1 | 500-5000 | 3-7 |

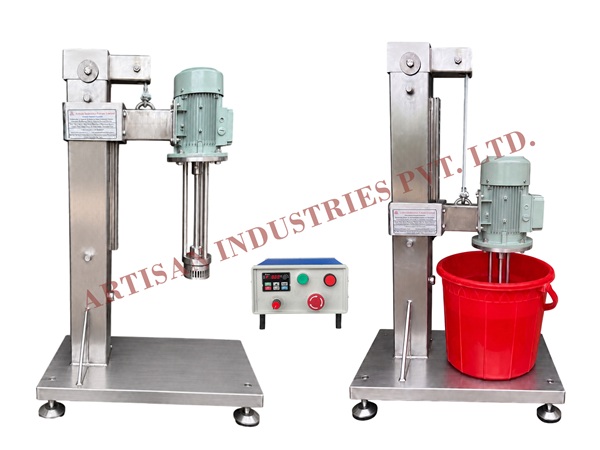

Laboratory Homogenizer-Manual Lifting
A Laboratory Homogenizer with Manual Lifting is a high-shear mixing device used to reduce particle size, create stable emulsions, and produce uniform dispersions in laboratory-scale formulations. The manually operated lifting mechanism allows precise vertical adjustment of the homogenizing head, enabling safe and convenient operation with containers of different sizes.
Models & Data Sheet
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| LHM-5 | 1/2 | 500-3000 | 1-5 |
| LHM-7 | 3/4 | 500-3000 | 3-7 |
| LHM-10 | 1 | 500-3000 | 3-10 |
| LHM-5* | 1/2 | 500-5000 | 1-3 |
| LHM-7* | 3/4 | 500-5000 | 2-5 |
| LHM-10* | 1 | 500-5000 | 3-7 |
Specifications & Key Features
Motor Power Options: Available in three power capacities to suit different formulation thicknesses: 1/2 HP, 3/4 HP, and 1 HP.
Variable Rotation Speeds: Depending on the specific model, the equipment operates at high-shear speeds ranging from 500 to 3000 RPM or 500 to 5000 RPM (at 50 Hz).
Suggested Capacity Range: Designed for laboratory-scale processing, handling batches from as small as 1 Liter up to 10 Liters depending on the selected model.
Dual Lifting Mechanisms: Offered in two distinct structural configurations to fit operator preference: Manual Lifting for precise, hand-operated vertical adjustments, and Motorized Lifting for effortless, electric height adjustments.
Versatile Processing Capabilities: Engineered as a multi-functional system optimized to reduce particle size, create stable emulsions, and produce highly uniform dispersions.
Applications
Pharmaceutical Formulations: Used in R&D to develop medicinal creams, ointments, and syrups by suspending active ingredients and creating highly stable emulsions.
Cosmetics & Personal Care: Ideal for blending lotions, shampoos, body washes, and cosmetic creams to ensure a smooth, consistent, and uniform texture.
Food & Beverage Development: Employed for laboratory-scale emulsification of sauces, salad dressings, dairy products, and flavor dispersions before moving to mass production.
Paints, Inks, and Coatings: Crucial for uniformly dispersing pigments and reducing particle sizes to create vibrant, smooth-flowing inks, paints, and specialized chemical mixtures.
Quality Control & Recipe Scaling: Acts as an essential testing tool for general laboratory research, allowing technicians to perfect formulations in small 1-to-10-liter batches before scaling up to industrial processing lines.
