Laboratory Homogenizer Cum Disperser
Artisan Laboratory Homogenizer Cum Disperser is designed for efficient mixing, emulsifying, homogenizing, and particle-size reduction in laboratory applications. It combines high-shear homogenization and high-speed dispersion functions in a single compact and versatile machine. The specially designed mixing head produces strong mechanical and hydraulic shear for uniform processing of liquids, powders, and semi-viscous materials. Its adjustable speed control enables accurate process optimization for different product viscosities and batch requirements. The unit is widely used in pharmaceutical, cosmetic, chemical, food, paint, ink, and research laboratory applications. The compact design allows easy installation, convenient cleaning, and efficient use of laboratory workspace. Precision controls and reliable components support repeatable results for product development, formulation testing, and quality-control processes.

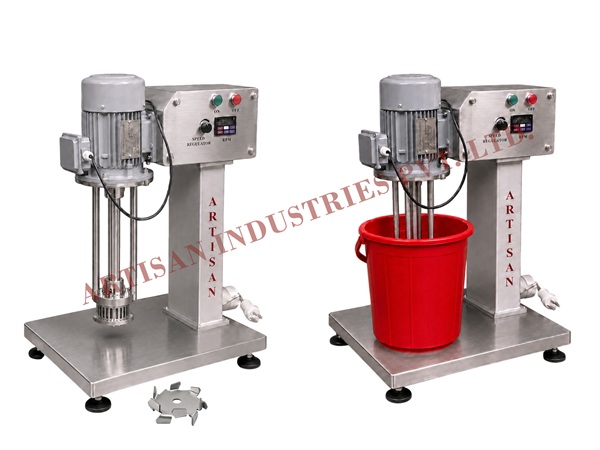

Laboratory Homogenizer Cum Disperser- Automatic Lifting
Artisan Laboratory Homogenizer Cum Disperser with Automatic Lifting provides efficient mixing, homogenizing, emulsifying, and dispersing in one compact unit. Its motorized lifting system enables smooth, safe, and effortless height adjustment of the mixing assembly. The machine is ideal for accurate laboratory processing of liquids, powders, and semi-viscous materials.
Models & Data Sheet
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| LHDA-5 | 1/2 | 500-3000 | 1-5 |
| LHDA-7 | 3/4 | 500-3000 | 3-7 |
| LHDA-10 | 1 | 500-3000 | 3-10 |
| LHDA-5* | 1/2 | 500-5000 | 1-3 |
| LHDA-7* | 3/4 | 500-5000 | 2-5 |
| LHDA-10* | 1 | 500-5000 | 3-7 |

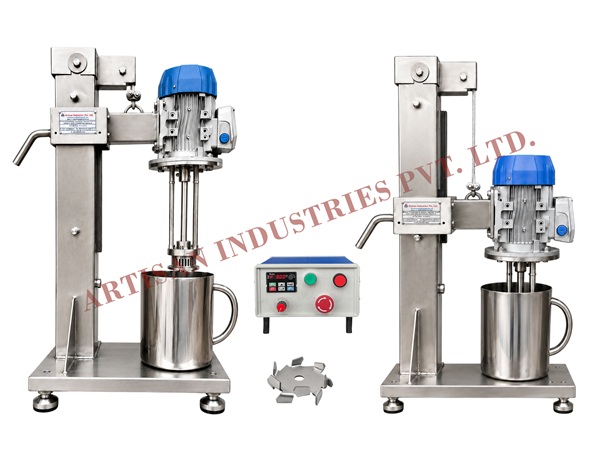

Laboratory Homogenizer Cum Disperser- Manual Lifting
Artisan Laboratory Homogenizer Cum Disperser with Manual Lifting performs efficient homogenizing, emulsifying, mixing, and dispersing in one compact unit. Its manually operated lifting system allows convenient and controlled height adjustment of the mixing assembly. It is suitable for laboratory processing of liquids and semi-viscous materials. The design ensures convenient operation & positioning.
Models & Data Sheet
| Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| LHDM-5 | 1/2 | 500-3000 | 1-5 |
| LHDM-7 | 3/4 | 500-3000 | 3-7 |
| LHDM-10 | 1 | 500-3000 | 3-10 |
| LHDM-5* | 1/2 | 500-5000 | 1-3 |
| LHDM-7* | 3/4 | 500-5000 | 2-5 |
| LHDM-10* | 1 | 500-5000 | 3-7 |
Specifications & Key Features
Motor Power Options: Available in three power capacities to suit different formulation thicknesses: 1/2 HP, 3/4 HP, and 1 HP.
Variable Rotation Speeds: Depending on the specific model, the equipment operates at high-shear speeds ranging from 500 to 3000 RPM or 500 to 5000 RPM (at 50 Hz).
Suggested Capacity Range: Designed for laboratory-scale processing, handling batches from as small as 1 Liter up to 10 Liters depending on the selected model.
Dual Lifting Mechanisms: Offered in two distinct structural configurations to fit operator preference: Manual Lifting for precise, hand-operated vertical adjustments, and Motorized Lifting for effortless, electric height adjustments.
Versatile Processing Capabilities: Engineered as a multi-functional system optimized to reduce particle size, create stable emulsions, and produce highly uniform dispersions.
Applications
Pharmaceutical Formulations: Used in R&D to develop medicinal creams, ointments, and syrups by suspending active ingredients and creating highly stable emulsions.
Cosmetics & Personal Care: Ideal for blending lotions, shampoos, body washes, and cosmetic creams to ensure a smooth, consistent, and uniform texture.
Food & Beverage Development: Employed for laboratory-scale emulsification of sauces, salad dressings, dairy products, and flavor dispersions before moving to mass production.
Paints, Inks, and Coatings: Crucial for uniformly dispersing pigments and reducing particle sizes to create vibrant, smooth-flowing inks, paints, and specialized chemical mixtures.
Quality Control & Recipe Scaling: Acts as an essential testing tool for general laboratory research, allowing technicians to perfect formulations in small 1-to-10-liter batches before scaling up to industrial processing lines.
