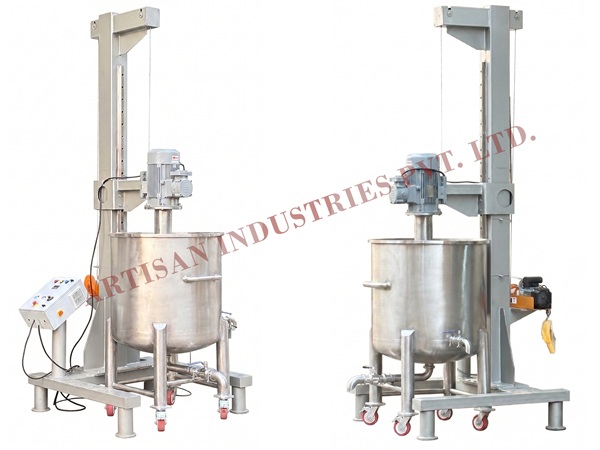

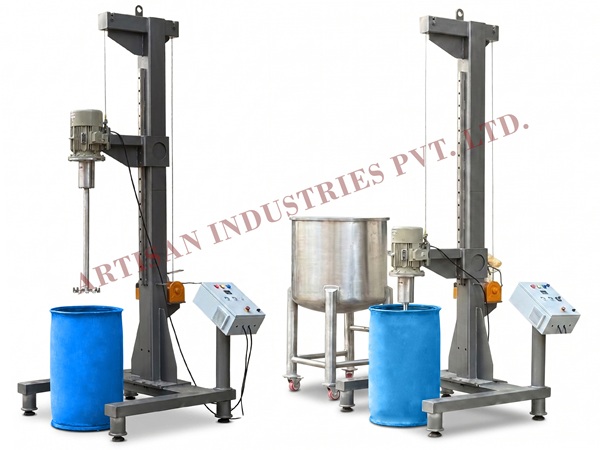

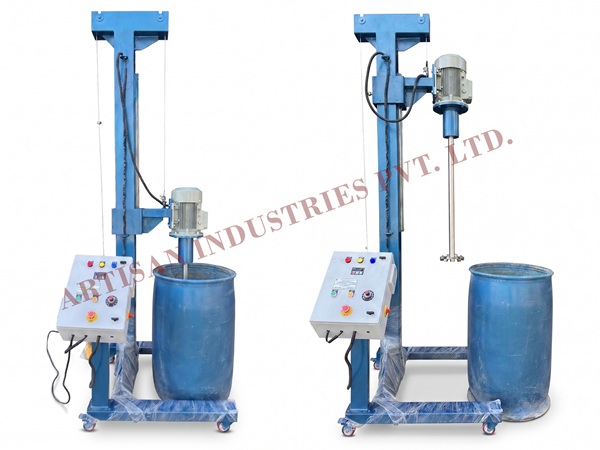

High Speed Disperser-Motorized Lifting
The High Speed Disperser with Motorized Lifting is a versatile and efficient mixing machine designed for rapid dispersion, blending, homogenizing, and dissolving of various materials. It is widely used in industries such as paints, coatings, inks, adhesives, chemicals, pharmaceuticals, cosmetics, agrochemicals, and specialty formulations.
The High Speed Disperser – Motorized Lifting is engineered to handle a wide range of viscosities and batch sizes, making it an ideal solution for both laboratory-scale development and large-scale industrial production. Its high-speed rotating disperser blade creates a powerful vortex that ensures rapid wetting, deagglomeration, and uniform distribution of solids into liquids. The machine is designed for consistent performance, helping manufacturers achieve superior product quality with minimal processing time. The sturdy construction, precision balancing, and reliable drive system ensure smooth, vibration-free operation even during extended production cycles. Available with customized vessel arrangements and automation options, the disperser can be tailored to meet the unique needs of various process industries, improving productivity, efficiency, and operational safety.
Models & Data Sheet
| STD Model | FLP Model | Motor Power (HP) | Rotation Speed @ 50 Hz (RPM) | Suggested Capacity (L) |
| DMH-1 | DMH-1F | 1 | 1500 | <50 |
| DMH-2 | DMH-2F | 2 | 1500 | <75 |
| DMH-3 | DMH-3F | 3 | 1500 | <100 |
| DMH-5 | DMH-5F | 5 | 1500 | <200 |
| DMH-7.5 | DMH-7.5F | 7.5 | 1500 | <300 |
| DMH-10 | DMH-10F | 10 | 1500 | <500 |
| DMH-15 | DMH-15F | 15 | 1500 | <750 |
| DMH-20 | DMH-20F | 20 | 1500 | <1000 |
Specifications & Key Features
- Motor Power (range) — Available from 1 HP to 100 HP to suit laboratory to production-scale mixing.
- Speed Range — High-speed shaft with stepless control typically 500–3600 RPM (typical working 800–3000 RPM) for low- to high-shear processes.
- Shaft / Blade Sizes — Hardened stainless-steel shaft (Ø 25–50 mm) with interchangeable dispersion blades (anchor, toothed, saw-tooth, turbine).
- Manual Lifting Mechanism — Smooth, robust manual crank or geared handwheel with counterbalance for safe, precise vertical positioning and easy height adjustment.
- Construction & Wetted Parts — SS304/SS316 wetted components or optional food-grade finishes; powder-coated carbon-steel frame for industrial durability.
- Mount & Clamping — Heavy-duty clamp with quick-lock mechanism and safety pin to secure head at any height; anti-vibration mount for stable operation.
- Controls & Safety — Onboard control panel with start/stop and emergency-stop; mechanical safety guard over blade and limit switches to prevent accidental lowering.
- Cooling & Duty Cycle — Designed for continuous or intermittent duty with optional ventilation/cooling for extended high-load runs.
- Maintenance & Serviceability — Easily accessible gearbox and shaft seals, greaseable bearings, replaceable blades and seals for low downtime.
- Applications & Compliance — Ideal for paints, coatings, inks, adhesives, cosmetics and food suspensions; optional CE/UL compliance and customizable options (VFD, stainless column, splash cover).
Advantages
- Precise height control — Counterbalanced handwheel/crank allows repeatable blade positioning for consistent mixing quality.
- Lower capital & simple operation — More affordable than motorized lifts; easy for operators to use with minimal training.
- Versatile processing — Handles a wide viscosity range with interchangeable blades and broad speed capability.
- Robust, low-maintenance design — Stainless wetted parts, greaseable bearings and accessible seals reduce downtime.
- Safe & compact footprint — Mechanical safety stops and compact frame fit small workshops and pilot labs without complex installation.
Applications
- Paints & Coatings — Rapid dispersion of pigments and fillers for uniform color, gloss and stability.
- Inks & Printing Pastes — Fine particle wetting and de-agglomeration for smooth, clog-free inks.
- Adhesives & Sealants — Efficient blending of resins, fillers and tackifiers for consistent bond strength.
- Cosmetics & Personal Care — Emulsifying creams, lotions and gels; safe for small-batch R&D and production.
- Food & Specialty Chemicals — Mixing sauces, pastes, and suspensions (non-hazardous) plus lab/pilot formulations.
